CURA Adjust-A-Web

Valley & Hip conditions

CURA Adjust-A-Web Valley condition

CURA Adjust-A-Web Valley condition

The Valley Angle (VA) is made with two piece, 14ga. construction and is fastened to the Top Member. The VWM at each Top Member row should not be farther than l' -6" from the valley centerline.



CURA Adjust-A-Web Hip condition

CURA Adjust-A-Web Hip condition

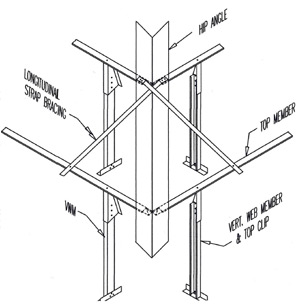

The Hip Angle (RA) is one piece, 14ga construction and is fastened to the Top Member.

CURA Adjust-A-Web Hip condition The VWM at each Top Member row should not be located farther than l' -6" from the hip centerline.

The Lateral Strap Bracing (S 1) is fastened to the Top Member over the Hip Angle and continues down to the Eave member.
